400-8006-805
| Technical Specification Sheet | |||
| | Product Name | ||

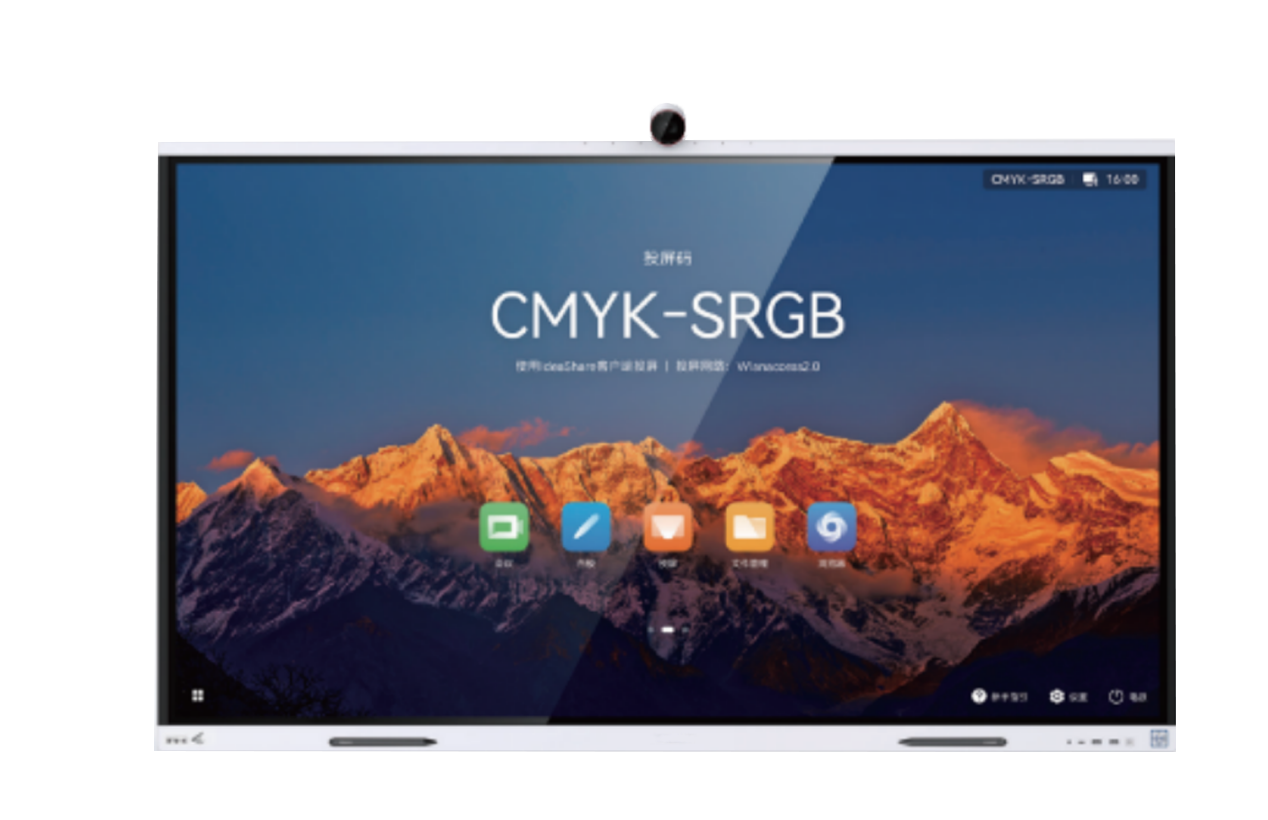

| ldeaHub S2-G | IdeaHub S2 Pro-G | ||
| Product Model Number | |||
| 65": IHS2-65SU-G75": IHS2-75SU-G86": IHS2-86SU-G | 65": IHS2-65PU-G75": IHS2-75PU-G86": IHS2-86PU-G | ||
| Product Dimensions (L×W×H) | |||
| 65": 1484.5mm X 91.6mm X 947.5mm75": 1705.7mm X 91.8mm X 1071.9mm86": 1953.0mm X 91.8mm X 1212.0mm | |||
| Package Dimensions (L × W × H) | |||
| 65":1650mmX220mmX1050mm75": 1900mmX220mmX1170mm86": 2090mmX250mmX1300mm | |||
| Weight (Net/gross weight - including packing box) | |||
| 65": 35.5kg/43.0kg75": 47.0kg/57.0kg86": 62.0kg/73.5kg | |||
| Components | |||
| Complete machine | Stylus | Matching cable | Floor stand |
| 1 set | 2 pieces | 1 power cord | Optional (65°, 75°, 86 universal) |
| Wall brackets | Smart screen projector | OPS pluggable computer | |
| Optional (65°, 75°, 86 universal) | Optional (Type-A/Type-C interface) | assorting | |
| Screen | |||
| Resolution | Type of backlight | Laminating process | |
| 4K | D-LED | Zero fit | |
| Writing | |||
| Writing delay | Touch height | Intelligent writing recognition | |
| 16ms | ≤2mm | Support Chinese and English, 11 kinds of pattern recognition | |
| Video Camera | |||
| Resolution | Sharpness | Lens privacy cover | Horizontal perspective |
| 4K | 1800 wire | Support | 80 ° |
| TV distortion | | | |
| <2% | | | |
| Speakers | |||
| Frequency domain | Number of speaker units | Total power | |
| 100Hz-20kHz | 4 | 40W | |
| Microphone | |||
| Pickup Angle | Picking distance | Frequency domain | Pickup enhancement |
| 180 ° | 12m | 80Hz-20kHz | Sound source location, echo cancellation, automatic gain control |
| Meetings | |||
| IdeaHub S2-G | ldeaHub S2 Pro-G | ||
| Adaptive conference: Huawei Cloud conference SmartRooms, Huawei Cloud WeLink, Tencent Conference Rooms, Feishu conference room | Adaptation conference: Walk-in conference, Huawei Cloud conference SmartRooms, Huawei Cloud WeLink, Tencent Conference Rooms, Feibook Conference Room | ||
| Meeting effect: Huawei cloud conference SmartRooms, Huawei Cloud Weuink:1080P30fps video +1080P30fps/4K8fps material sharing Tencent conference Rooms:1080P video flying book conference room: 720P video | Conference effect:Settled conference:1080P30fps video +1080P30fps/4K8fps material sharingLicenseUpgrade: 4K30fps video +4K30fps material sharing Huawei Cloud Conference SmartRooms, Huawei Cloud Welink: 1080P30fps frequency +1080P30fps/4K8fps material sharing Tencent conference R00m5:1080P frequency flying book conference room: 720P video | ||
| AI function | |||
| Smart framing (Auto-Framing) | Smart Director (speaker tracking) | Smart soundscreen | DNN de-reverb |
| Support | Support | Support | Support |
| System | |||
| CPU | RAM | Flash | |
| 8-core | 8GB | 64GB | |
| Operating system | Security | Language | |
| Harmonyos, Windows (OPS optional) | Embedded encryption chip, support H.235, STARTTLS, TLS and SRTP encryption, secure boot, TEE(Trusted Execution environment) | Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, Italian | |
| Wireless connection | |||
| Wi-Fi module | Wi-Fi Frequency | NFC | |
| Wi-Fi6 | 2.4 GHz + 5 GHz | Support | |
| Interfaces | |||
| Video input interface | Video output interface | Audio input interface | |
| 1 X HDMI(4K supported) | 1 X HDMI(4K support) | 1x3.5mmLINE IN 1 xHD-AI | |
| Audio output interface | Other ports | | |
| 1x3.5mm LINE OUT | 3 xUSB 3.0 1 xType-C 1×RJ45 (10/100/1000MLAN) | | |
