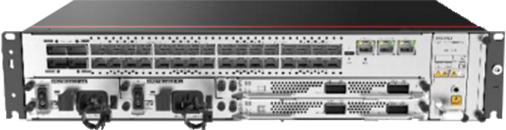

NetEngine 8000 M4-G
NetEngine 8000 M4-G
The NetEngine 8000 M4-G is the most cost effective Mini BNG router. Only 2U tall and 220 mm deep, it has a port capacity of up to 1.6 Tbps and supports four service slots. It provides 100GE, 50GE, 40GE, 25GE, 10GE, and GE ports to flexibly adapt to different service scenarios and supports features such as SRv6, EVPN, FlexE, and 1588v2. Its compact design saves space resources and significantly reduces CAPEX. The product fully supports the future-oriented next generation unified network SRv6 technology, which can realize the construction of IP backbone, metro area, mobile backport and data center and other parts of the network, which can be carried by 5G, personal/enterprise cloud, cloud mutual connection, IOT, government-enterprise dedicated line, home wide application, CDN and other applications. As the basic carrying protocol of the whole network, it can realize the comprehensive carrying capacity of all services from end to end. Through SRv6, protocol simplification, large-scale networking, seamless integration, high reliability, integrated business chain, programmable network + business, whole ecological industrial system can be achieved. It supports the Data Redundancy Elimination (DRE) function to compress/decompress data between wide area border routers, reduce the bandwidth consumption of wide area links, save line costs, and accelerate the deployment of distributed data centers. NetEngine 8000 M4-G integrates a variety of functions, simplifies the network structure, provides rich service types, reliable quality of service and intelligent operation and maintenance, leads the IP WAN to the intelligent network of automatic driving, and provides continuous momentum for the business success of enterprise customers.
Technical Specification

Items

Instructions

Cabinet Installation Standards

21-inch ETSI-compliant width

19-inch IEC-compliant width

Dimensions

(W × D × H, excluding packing materials)

442mm × 220mm × 88.9mm

Dimensions

(W × D × H, including packaging materials)

585mm × 390mm × 335mm

Chassis Height

2U

MTBF

31.62 year

MTTR

0.5 hour

Availability

0.999998195

SDRAM Specifications

16GB

Flash

64MB

Storage

16GB

Power Supply System

AC

Rated Input Voltage

200V to 240V/100V to 127V dual live wire with 240V HVDC support

Input Voltage Range

90V to 290V

Maximum Input Current

10A

Rated Output Power

1500W

Heat Dissipation Method

System air cooling

Air Flow Direction

Left in and right out

Total Number of Slots

8

Number of SPU Slots

2

Power Supply Redundancy

1+1

Fan Redundancy

1+1, short-term normal operation in 40℃ environment after single fan failure (2 fans in one fan module)

Long-term Operating Temperature

-20℃ to 55℃

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
