The digital wave is sweeping the world, extensive connectivity, explosive growth of data and booming intelligent applications are profoundly changing the way of human life and work. The digitalization and cloud service of enterprise business are promoting the transformation of enterprise network, but also bring greater challenges to network security: increasing threats, unknown threat mutation speed and high concealability; Users' demand for security services is gradually increasing, and performance and delay have become bottlenecks; Massive security policies and logs consume a lot of time in threat handling and O&M. Firewall, as the "first door" at the network boundary, is the first choice for enterprise security protection. However, traditional firewalls can only analyze and block threats based on signatures. This method has no effective disposal method for unknown threats, and the effectiveness of threats depends on the professional degree of operation and maintenance personnel. This single-point, passive, in-process defense method has been unable to effectively solve the unknown threat attacks, and it is difficult to effectively identify the threats hidden in the encrypted traffic.
The HiSecEngineUSG 6000F-G series AI firewall, through the new hardware and software architecture, to create a new generation of AI firewall with intelligent defense, excellent performance, extremely simple operation and maintenance three key capabilities, effectively respond to challenges. TheUSG 6000F-G series uses intelligent technology to enable border defense, accurately blocking known and unknown threats; Multiple dedicated security acceleration engines are built in to effectively improve the performance of key services such as forwarding, content security detection, and IPSec. Through the security operation and maintenance platform to achieve unified management and operation and maintenance of firewall, intrusion prevention, anti-ddos and other security products, reduce security operation and maintenance OPEX.

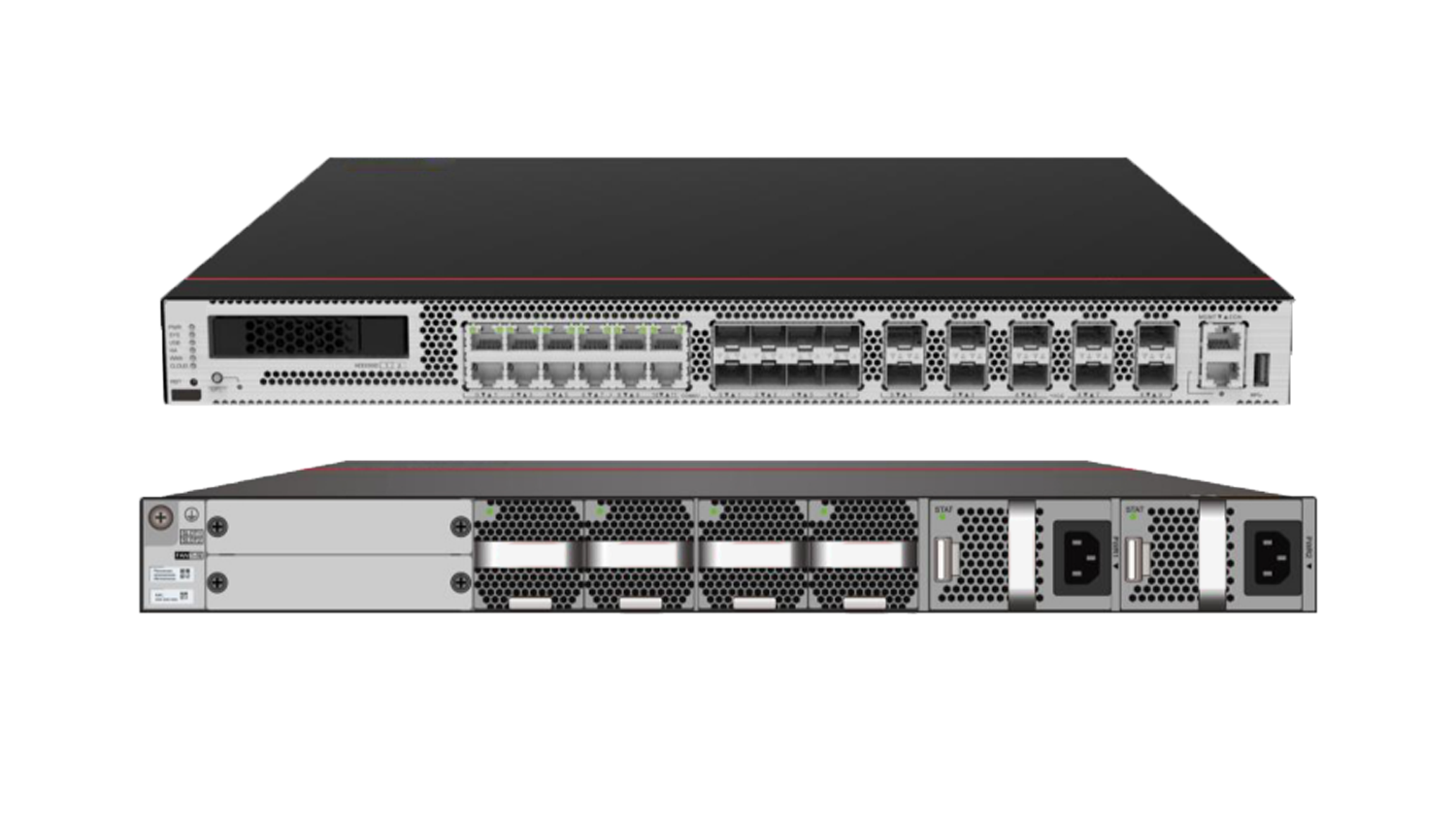

| Model Number | USG6615F-G | USG6625F-G | USG6635F-G | USG6655F-G | |
| Fixed Port | Service Port | 8*GE COMBO + 4*GE(RJ45) + | 8*GE COMBO + 4*GE(RJ45) + 4*GE(SFP ) +6*10GE(SFP+) | 8*GE COMBO + 4*GE(RJ45)+ 10*10GE(SFP+) | 8*GE COMBO + 4*GE(RJ45)+ 10*10GE(SFP+) |
| USB | 1 x start | ||||
| Bypass Card | Supports two electrical or optical bypass cards | ||||
| External Storage | Optional 2.5-inch SATAhard drive (240GB/480GB/960GB/1920GB), hot-swappable | ||||
| Product Profile | 1U | ||||
| Dimensions(W x D x H) | 442mmx 420mmx 43.6mm | ||||
| Fan | 1 + 3 | ||||
| Heat Dissipation (airflow direction) | Front panel in, back panel out | ||||
| Maximum Power Consumption | 222W | 242W | |||
| Power Supply (AC) | 100 V-240 V, 50 Hz/60 Hz | ||||
| Power Supply(AC) Redundant | Optional dual power supply | Dual power supplies come standard | |||
| Weight (empty) | 6.3 kg | 7.3 kg | |||
| Work RingHabitat | Temperature | 0 ~ 45 ℃ | |||
| | Humidity | 5%-95%non-condensation | |||
| Storage RingHabitat | Temperature | -40C to70C | |||
| Habitat | Humidity | 5% to95% | |||
| | | | | | |
| Model number | USG6685F-G | USG6710F-G | USG6715F-G | USG6725F-G | |
| Fixed Port | Service Port | 8*GE COMBO + | 2*100GE(QSFP28) + 2*40G(QSFP+)+ 8*25(ZSFP+) | 2*100GE(QSFP28) + 2*40G(QSFP+)+ 8*25(ZSFP+) + 20*10GE(SFP+)1 | 4*100GE(QSFP28) + |
| USB | 1 x start | ||||
| Bypass Card | Support | -- | -- | -- | |
| External Storage | Optional 2.5-inch SATAhard drive (240GB/480GB/960GB/1920GB) | ||||
| Product Form | 1 U | ||||
| Dimensions(W x D x H) | 442mmx420mmx43.6mm | 442mmx 600mmx 43.6mm | |||
| Fan | 1 + 3 | 1 + 3 | 1 + 3 | 1 + 4 | |
| Heat Dissipation (airflow direction) | Front panel in, rear panel out | ||||
| Maximum Power Consumption | 242 W | 391 W | 391 W | 445 W | |
| Power Supply (AC) | 100 V-240 V, 50 Hz/60 Hz | ||||
| Power Supply(AC) Redundant | Dual power supply as standard | ||||
| Weight (empty) | 7.3 kg | 10.26 kg | 10.26 kg | 10.6 kg | |
| Working Environment | Temperature | 0 ~ 45 ℃ | |||
| Humidness | 5%-95%non-condensation | ||||
| Work Environment | Temperature | -40C to70C | |||
| Humidity | 5% to95% | ||||

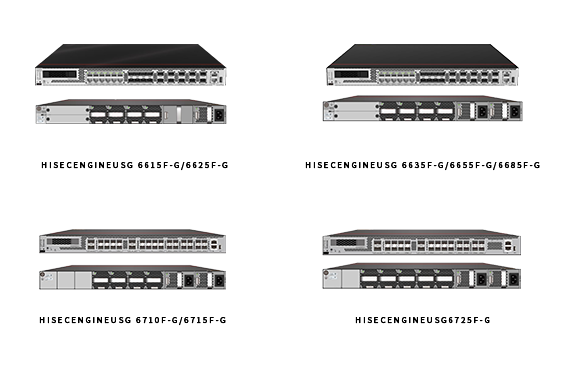

Full range of firewall models:
| Model Number | HiSecEngine USG1000-G Series AI firewall |
| USG12004-G | USG12004-G Basic AC configuration (including AC chassis,2 x MPUD,2 x AC power supply, full fan) |
| USG12008-G | USG12008-G Basic AC configuration (including AC chassis,2 x MPUD,4 x SFUA,2 x AC power supply, full fan) |
| USG12004-F-G | USG12004-F-G Basic AC configuration (including the integrated chassis,2 x SRUA,2 x 3000W AC power supply) |
| USG12008-F-G | USG12008-F-G Basic AC configuration (including integrated chassis,2*SRUB,2*3000W AC power supply) |
| | |
| Model Number | HiSecEngine USG6700F-G Series AI firewall |
| USG6710F-G | USG6710F-AC-G AC host (2*QSFP28 + 2*QSFP+ + 8*ZSFP+ + 20*SFP+, 2 AC power supplies) |
| USG6715F-G | USG6715F-AC-G AC host (2*QSFP28 + 2*QSFP+ + 8*ZSFP+ + 20*SFP+, 2 AC power supplies) |
| USG6725F-G | USG6725F-AC-G AC host (4*QSFP28 + 16*ZSFP+ + 8*SFP+, 2 AC power supplies) |
| | |
| Model Number | HiSecEngine USG6600F-G Series AI firewall |
| USG6615F-G | USG6615F-G AC host (8*GE COMBO + 4*GE RJ45 + 4*GE SFP+ 6*10GE SFP+,1 AC power supply) |
| USG6625F-G | USG6625F-G AC host (8*GE COMBO + 4*GE RJ45 + 4*GE SFP+ 6*10GE SFP+,1 AC power supply) |
| USG6635F-G | USG6635F-G AC host (8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+,2 AC power supplies) |
| USG6655F-G | USG6655F-AC-G AC host (8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+,2 AC power supplies) |
| USG6685F-G | USG6685F-AC-G AC host (8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+, 2 AC power supplies) |
| | |
| Model Number | HiSecEngine USG6500F-G Series AI Firewall (Cartridge) |
| USG6525F-G | USG6525F-G AC host (2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| USG6555F-G | USG6555F-G AC host (2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| USG6565F-G | USG6565F-G AC host (2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| USG6585F-G | USG6585F-G AC host (2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| | |
| Model Number | HiSecEngine USG6500E-G Series AI Firewall (Cartridge) |
| USG6525E-G | USG6525E-G AC host (2*GE WAN+8*GE Combo+2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| USG6555E-G | USG6555E-G AC host (2*GE WAN+8*GE Combo+2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| USG6565E-G | USG6565E-G AC host (2 x GE WAN+8 x GE Combo+2 x 10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
| USG6585E-G | USG6585E-G AC host (2*GE WAN+8*GE Combo+2*10GE SFP+,1 AC power supply, including SSL VPN 100 users) |
