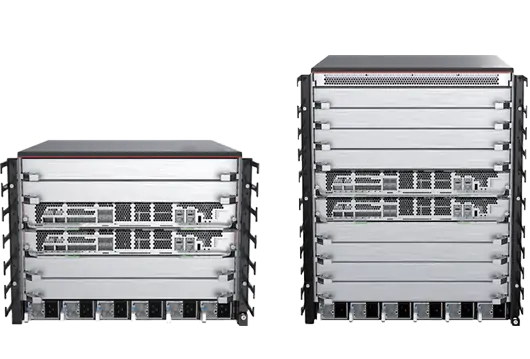

HiSecEngine AntiDDoS12000-F-G
HiSecEngine AntiDDoS12000-F-G
With the rapid development of the Internet, the means of hacker attack continue to evolve, and the malicious competition in the industry becomes increasingly fierce. The intensity, frequency and complexity of DDoS attacks continue to increase, and DDoS defense faces new challenges:
• The attack intensity continues to rise, challenging the cost of defense;
• Massive traffic attacks show Fast Flooding, challenging the response speed of defense systems;
• Services are diversified, attacks are complicated, and traditional defense technologies are ineffective.
To meet the new defense challenges, AntiDdos 12000-F-G series products are launched: full traffic per-packet detection, 60+ traffic model, millisecond attack response; NP defense acceleration, efficient blocking of network layer attacks; 7 layers of intelligent "filter board", multidimensional behavior analysis and machine learning, accurately identify a variety of complex CC attacks; Original online upgrade defense engine, quick response to 0-day DDoS; Automatic defense strategy tuning, defense of the whole intelligent driving.
Product Highlights
• Excellent performance: CPU intelligent collaboration NP defense acceleration, efficient block network layer attacks, low defense cost;
• Millisecond response: full traffic per-packet detection, 60+ traffic model, millisecond attack response, zero impact on services;
• Precision defense: 7 layers of intelligent "filter board" + machine learning, layer by layer filtering L3/4/7 attacks; Original online upgrade defense engine, quick response 0-day DDoS; Three-layer defense architecture, second-level response to segment sweep attacks;
• Intelligent driving: expert strategy template, defense effect evaluation, defense strategy automatic tuning, defense intelligent driving.
Technical Specification

Model number

AntiDDoS12004-F-G

AntiDDoS12008-F-G

Ports

Master Slot

2

Main Control Board

Supports1*100GE QSFP28/2*40GE QSFP+/4*25G SFP28/8*10G SFP+ service ports

Expansion Slot

4

8

Interface Board

2-port 40G/100GBase-QSFP28 +12-port 100M/1G/10GBase-SFP+

24-port FE/1G/10GBase-SFP+

Defense Performance

Maximum Defense Performance

300 Gbps

600 Gbps

Maximum Defense Packet Rate

200 Mpps

400 Mpps

New Session

220,000 /second per CPU

Concurrent Sessions

30million /CPU

Number of Protected Objects

4,000

Number of Ooncurrent Protected Hosts

200,000 permachine

Attack Response Time

In-line deployment and off-line static diversion deployment:<1 second

Packet by packet detection Dynamic diversion deployment:<3 seconds

Form Factor and Weight

Width x Depth x Height

442mm x 515.5mm x 352.8mm (8U)

442mm x 515.5mm x 575mm (13U)

Weight

31.3kg(empty case)

48.94kg(empty case)

Power Supply and Operating Environment

Maximum Power Consumption

1560W(fully configured)

2914W(full size)

Power Supply Redundancy

N+1

Fan Redundancy

1+1backup

Air Duct

Front and rear air ducts

Long-term Working Environment Temperature

-5°C~ 45°C(-60m~ 1800maltitude)

Storage Temperature

-40°C to 70°C

Long-term Working Environment Relative Humidity

5%RH to 95%RH,non-condensation

Storage Elevation

≤5000m

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
