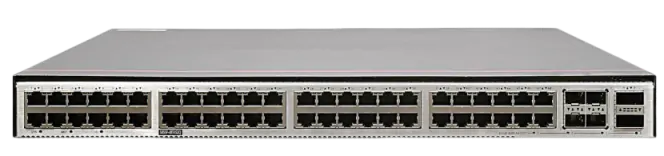

CloudEngine 5855F-G

The CloudEngine 5855F-G series is a new generation of high-density Gigabit Ethernet switches for data centers. The CloudEngine 5855F-G adopts advanced hardware design, supports 10GE/40GE uplink and high-density Gigabit downlink, supports a maximum of nine stacked switches, and allows flexible choice of air channel direction. CloudEngine 5855F-G series switches are designed for high-density gigabit access in data centers, helping enterprises and carriers build a data center network platform for the cloud computing era. They can also be used for aggregation or access of campus networks.

Technical Specification

Items	CloudEngine 5855F-48T4S2Q-G
Base-T interface	48
SFP+ interface	4
QSFP+ port	2
Switching capacity	1.28 -tbps / 11.52 -tbps
Packet forwarding rate	252Mpps
Air duct type	Standard front/rear or rear/front air duct
Chassis dimensions mm(W x D x H)	442 x 420 x 43.6
Full weight	7.5Kg
Environmental requirements	Operating temperature: 0°C to 40°C (0m to 1800m) Storage temperature: -40°C to +70°C Relative humidity: 5%RH to 95%RH, non-condense
Typical power consumption	102 W

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
