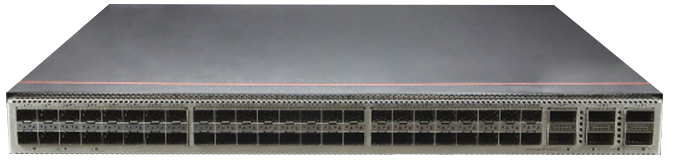

CloudEngine 6857E-48S6CQ-G

The CloudEngine 6857E-G is a next-generation high-performance, high-density, low-latency 10-Gigabit Ethernet switch for data centers. The CloudEngine 6857EE-G adopts advanced hardware design, provides high-density 10GE ports, supports 100GE upstream ports, supports rich data center features, high-performance stacking, and flexibly selects the direction of the air channel. The CloudEngine 6857E-G switch is designed for high-density 10-gigabit access in data centers, helping enterprises and carriers build a data center network platform for the cloud computing era. It can also be used for the core or aggregation of campus networks.

Technical Specification

Items	CloudEngine 6857E-48S6CQ-G
10GE SFP+ Port	48
100GE QSFP28 Ports	6
Exchange Capacity	4.8Tbps/76.8Tbps
Packet Forwarding Rate	2000Mpps
Air Duct Type	Standard front/rear or rear/front air duct
Chassis Dimensions (W × D × H)	442mm × 420mm × 43.6mm
Full Weight	7.75kg
Environmental Requirements	Operating Temperature: 0℃ to 40℃ (0m to 1800m) Storage Temperature: -40℃ to +70℃ Relative Humidity: 5% to 95%RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V HVDC: 190V to 400V
Maximum Power Consumption	318W

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.

Resources

Documents

CloudEngine 6857E-48S6CQ-G Data Center Switch

Download
