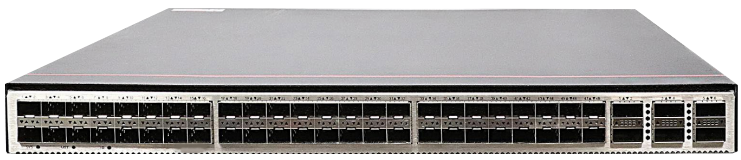

CloudEngine 6857F-G

CloudEngine 6857F-G

The CloudEngine 6857F-G is a new generation of high-performance, high-density, low-latency 10-Gigabit Ethernet switches for data centers. The CloudEngine 6857F-G adopts advanced hardware design, provides high-density 10GE ports, 40GE upstream ports, rich data center features, high-performance stacking, and flexible air channel direction. The CloudEngine 6857F-G switch is designed for high-density 10-Gigabit access in data centers, helping enterprises and carriers build a data center network platform for the cloud computing era. It can also be used for the core or aggregation of campus networks.

Technical Specification

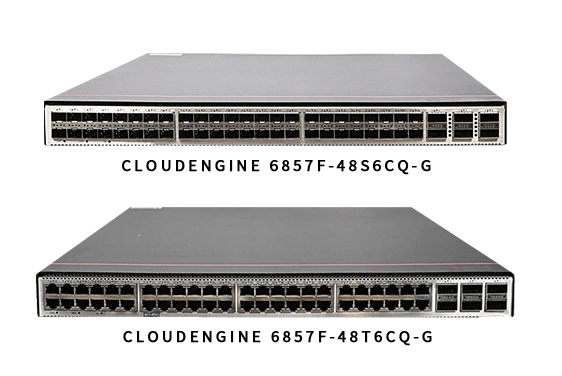

Items	CloudEngine 6857F-48T6CQ-G	CloudEngine 6857F-48S6CQ-G
10GE Base-T Port	48	0
10GE SFP+ Port	0	48
40GE QSFP+ Port	0
100GE QSFP28 Port	6
Switching Capacity	4.8Tbps/76.8Tbps
Packet Forwarding Rate	2000Mpps
Air Duct Type	Standard front/rear or rear/front air duct
Chassis Dimensions (W × D × H)	442mm × 420mm × 43.6mm
Full Weight	8.05kg	7.75kg
Environmental Requirements	Operating Temperature: 0℃ to 40℃ (0m to 1800m) Storage Temperature: -40℃ to +70℃ Relative Humidity: 5% to 95%RH, non-condense
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V HVDC: 190V to 400V
Typical Power Consumption	148W	148W

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.

Resources

Documents

CloudEngine 6857F-G Data Center Switch

Download
