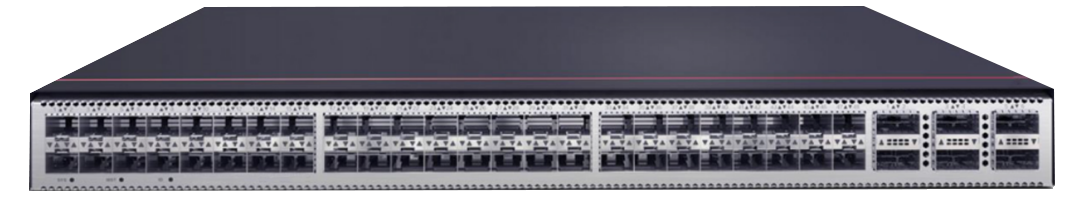

CloudEngine 6881-G

The CloudEngine 6881-G series is a new generation of high-performance, high-density 10GE access switches for data centers. The CloudEngine 6881-G series adopts the advanced hardware design, provides high-density 10GE ports and supports 40GE/100GE uplink ports. All ports support line-speed forwarding, rich data center features, and flexible air channel direction. The CloudEngine 6881-G series switches are designed for high-density 10GE access in data centers, helping enterprises and carriers build a data center network platform for the cloud computing era. They can also be used for the core or aggregation of campus networks.

Technical Specification

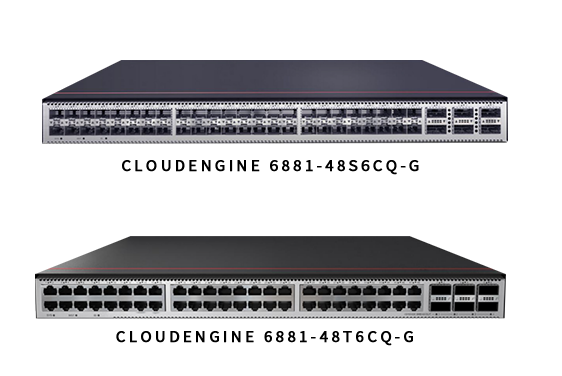

Items	CloudEngine 6881-48S6CQ-G	CloudEngine 6881-48T6CQ-G
10GE SFP+ Port	48	0
10GE BASE-T Ports	0	48
40/100GE QSFP28 Ports	6	6
Exchange Capacity	4.8Tbps/76.8Tbps
Packet Forwarding Rate	2000Mpps
Cache	42MB
Air Duct Type	Standard front/rear or rear/front air duct
Chassis Dimensions (W × D × H)	442mm × 420mm × 43.6mm
Full Weight (with AC power and fan box, no optical module)	7.8kg	8.9kg
Environmental Requirements	Operating Temperature: 0℃ to 45℃ (0m to 1800m) Storage Temperature: -40℃ to +70℃ Relative Humidity: 5% to 95%RH, non-condensing	Operating Temperature: 0℃ to 40℃ (0m to 1800m) Storage Temperature: -40℃ to +70℃ Relative Humidity: 5% to 95%RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: -38.4 to -72V 240V HVDC: 190V to 290V 380V HVDC: 190V to 400V
Typical Power Consumption	194W	347W

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.

Resources

Documents

CloudEngine 6881-G Data Center Switch

Download
