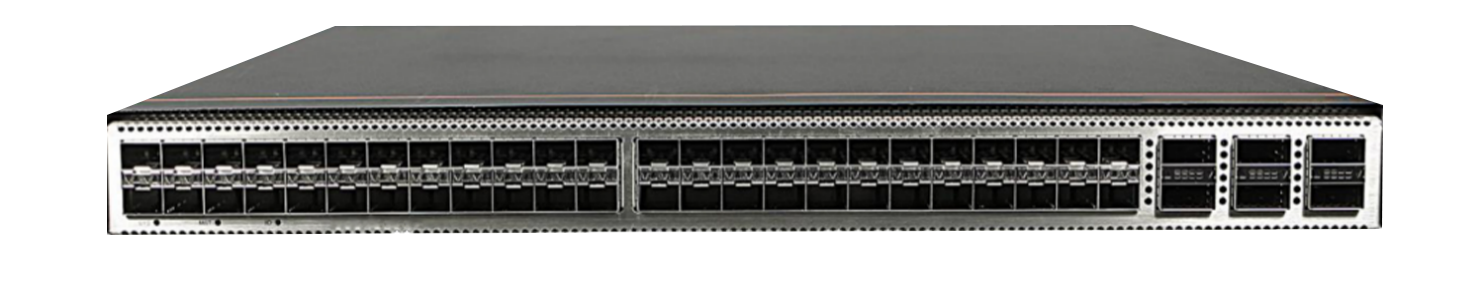

CloudEngine 6863E-G

The CloudEngine 6863E-G series is a new generation of high-performance, high-density 25GE access switches for data centers. The CloudEngine 6863E-G series adopts advanced hardware design, provides high-density 25GE ports, supports 100GE upstream ports, all ports support line-speed forwarding, supports rich data center features and high-performance stacking, and allows flexible selection of air channel directions. The CloudEngine 6863E-G series switches are designed for high-density 25GE access in data centers, helping enterprises and operators build a data center network platform for the cloud computing era, and can also be used for the core or aggregation of campus networks.

Technical Specification

Items	CloudEngine 6863E-48S6CQ-G
10/25GE SFP28 Port	48
40/100GE QSFP28 Port	6
Switching Capacity	4.8Tbps/76.8Tbps
Packet Forwarding Rate	2000Mpps
Air Duct Type	Standard front/rear or rear/front air duct
Chassis Dimensions (W × D × H)	442mm × 420mm × 43.6mm
Full Weight	7.8kg
Environmental Requirements	Operating Temperature: 0℃ to 40℃ (0m to 1800m) Storage Temperature: -40℃ to +70℃ Relative Humidity: 5% to 95%RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V HVDC: 190V to 400V
Maximum Power Consumption of the Machine	384W

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
