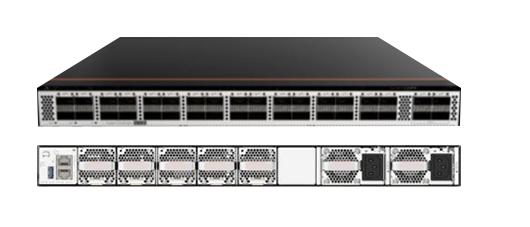

CloudEngine 8855-G

The CloudEngine 8855-G series is a new generation of high-performance, high-density 40GE/100GE/200GE cassette switches for data centers. CloudEngine 8855-G series adopts advanced hardware structure design, provides high-density 40GE/100GE port access, and supports four 200GE ports. It supports rich data center features and flexible choice of air channel direction. CloudEngine 8855-G series switches are designed for high-density 40GE/100GE access in data centers, helping enterprises and operators build a data center network platform for the cloud computing era, and can also be used for the core or aggregation of campus networks.

Technical Specification

Items	CloudEngine 8855-32CQ4BQ-G
40GE/100GE QSFP28 Ports	32
200GE QSFP56 Port	4
Switching Capacity	8Tbps
Packet Forwarding Rate	2400Mpps
Air Duct Type	Standard front/rear or rear/front air duct
Chassis Dimensions (W × D × H)	442mm × 420mm × 43.6mm
Full Weight	8.31kg
Environmental Requirements	Operating Temperature: 0℃ to 40℃ (0m to 1800m) Storage Temperature: -40℃ to +70℃ Relative Humidity: 5% to 95%RH, non-condensing
Operating Voltage	1200W AC &240VDC power module: AC:90VAC to 290VAC, 45Hz-65Hz; DC:190VDC to 290VDC
Typical Power Consumption	378W

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
