400-8006-805
Physical parameters
| Items | Description |
| Overall dimensions (height x width x depth) | 43.6 mm * 210 mm * 250 mm |

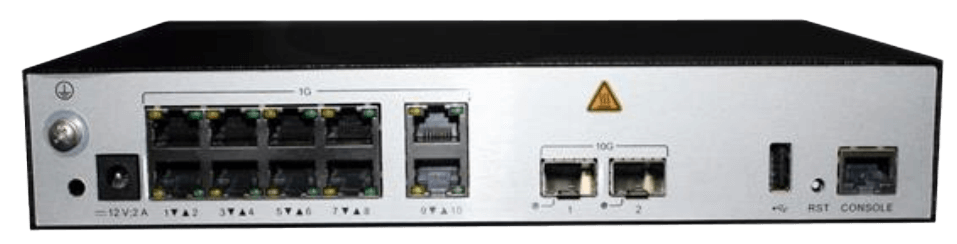

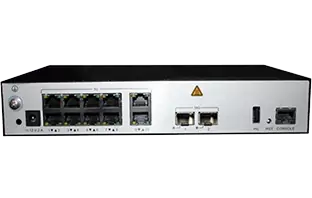

| Interface type | 2 x 10GE optical port +10 x GE electrical port 1 x Console port, 1 x USB |
| Maximum power consumption | 21W |
| weight | 1.47 kg |
| Operating temperature with altitude | -60m ~ +1800m: 0℃~ +45℃ 1800m ~ 5000m: The maximum operating temperature is reduced by 1℃for every 220m increase in altitude |
| Relative humidity | 5%RH to 95%RH, non-condensing |
| Power module | AC/DC power adapter |
Performance specifications
| Items | Description |
| Number of manageable aps | 512 Instructions The number of remote units managed by the WLAN AC does not occupy the license resources of the WLAN AC, but actually The number of common aps and remote units that a WLAN AC can access cannot exceed the upper limit. |
| Maximum user access capability | 4096 Instructions The number of access users varies according to different authentication methods |
| Number of MAC address tables | 8192 |
| Forwarding capability | 10Gbps |
| Number of vlans | 4096 |
| Number of routing entries | IPv4:8192 IPv6:2048 |
| Number of ARP entries | 6144 |
| Number of multicast entries | 2048 |
| Number of DHCP IP address pools | The maximum number of address pools is 64. The maximum number of addresses that can be assigned to each pool is 8192 |
| Local accounts | 1000 |
| Number of access control lists | 4096 |
