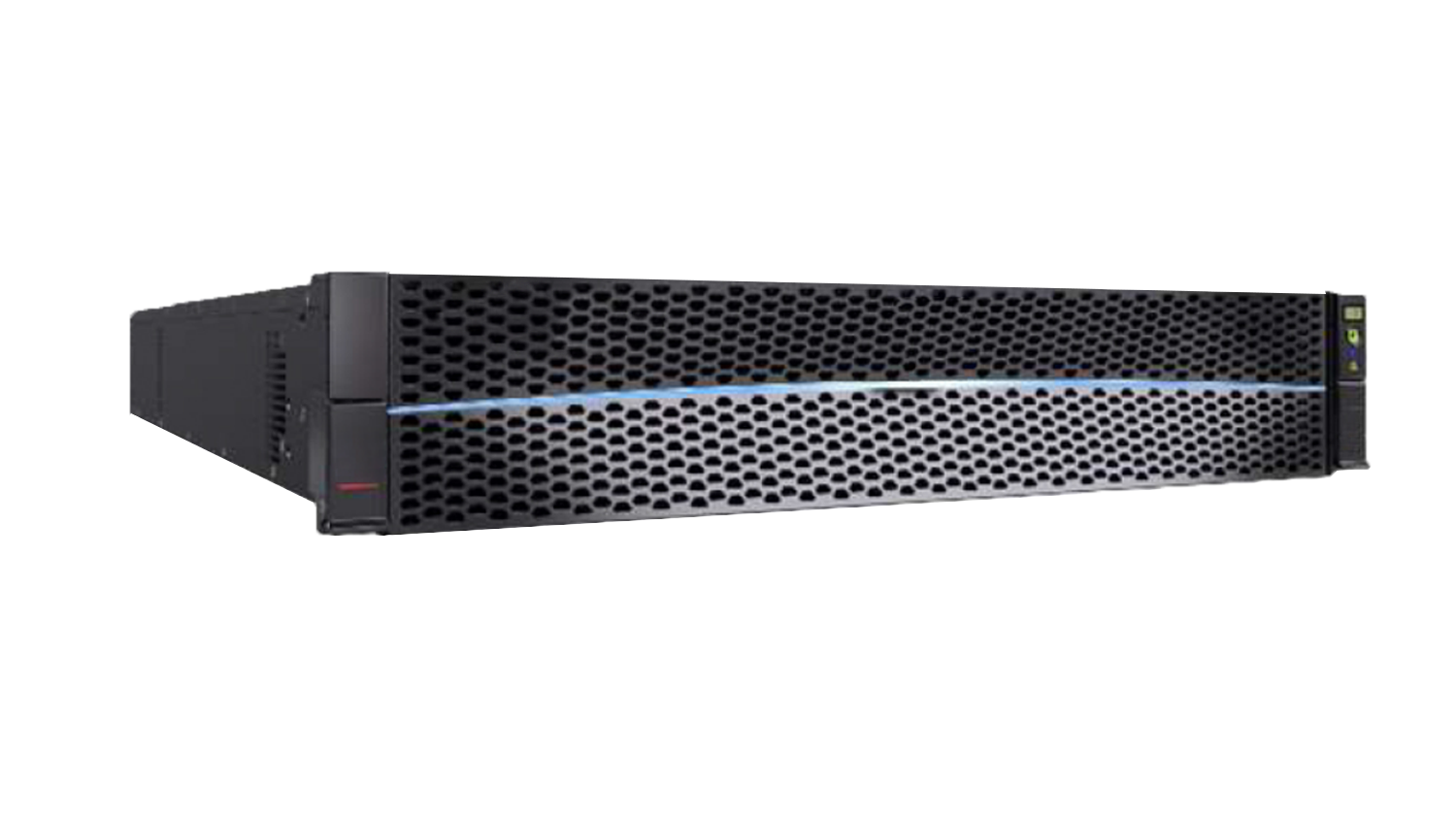

OceanStor Dorado 2100-G

The OceanStor Dorado 2100-G is an entry-level all-flash storage system that integrates a new hardware platform and FlashLink® intelligent software algorithms to improve performance by 50%. Multiple built-in features, intelligent storage internal application services; A-A duplex architecture to provide high reliability; Simple graphical interface design provides customers with minimal installation, deployment and O&M experience.
The OceanStor Dorado 2100-G all-flash storage is suitable for a variety of NAS storage application scenarios, such as sharing, mobile working, data backup, and multi-point file synchronization. It is a reliable choice in medical, manufacturing, government, and education fields. Its fast and stable storage system provides cost-effective and efficient services, making IT an ideal choice for IT applications in small and medium-sized enterprises.

Technical Specification

Model Number	OceanStor Dorado 2100-G
Hardware Specifications
Maximum Number of Controllers	8
Maximum Cache (dual controls, expandable with controller)	128 GB-512 GB
Supported Storage Protocols	NFS, CIFS, NDMP, SMB
Front-end Channel Port Type	1/10/25 GbE
Back-end Channel Interface Type	SAS 3.0
Maximum Number of Hot-swappable I/O Modules/Controller Enclosures	4
Maximum Number of Front-end Host Ports/Controller Enclosures	28
Maximum Number of Plates	400
Type of Hard Drive	960 GB/1.92 TB/3.84 TB/7.68 TB/15.36 TB SAS SSD
Software Specifications
RAID Support	RAID 0, RAID 1, RAID 3, RAID 10, RAID 50*, RAID5, RAID6, and RAID-TP (Tolerance for simultaneous failure of three disks)
Electrical Specifications
Power Supply	Controller enclosure: 200V-240VAC ±10%, 192V-288VDC
Power Supply	Disk enclosure: 100V-240VAC ±10%, 192V-288VDC
Dimensions (H × W × D)	86.1 mm × 447 mm × 410 mm
Weight (including hard drive unit weight)	SAS controller enclosure: ≤22.65kg SAS SSD disk enclosure: ≤20kg
Operating Environment Temperature	When the altitude is -60 to +1800m, the ambient temperature is: 5 ℃ to 35 ℃ (cabinet) or 40 ℃ (frame) When the altitude is 1800 to 3000m, the altitude is increased by 220m, and the ambient temperature is decreased by 1 ℃
Humidity of Working Environment	10% to 90% RH

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
