Form

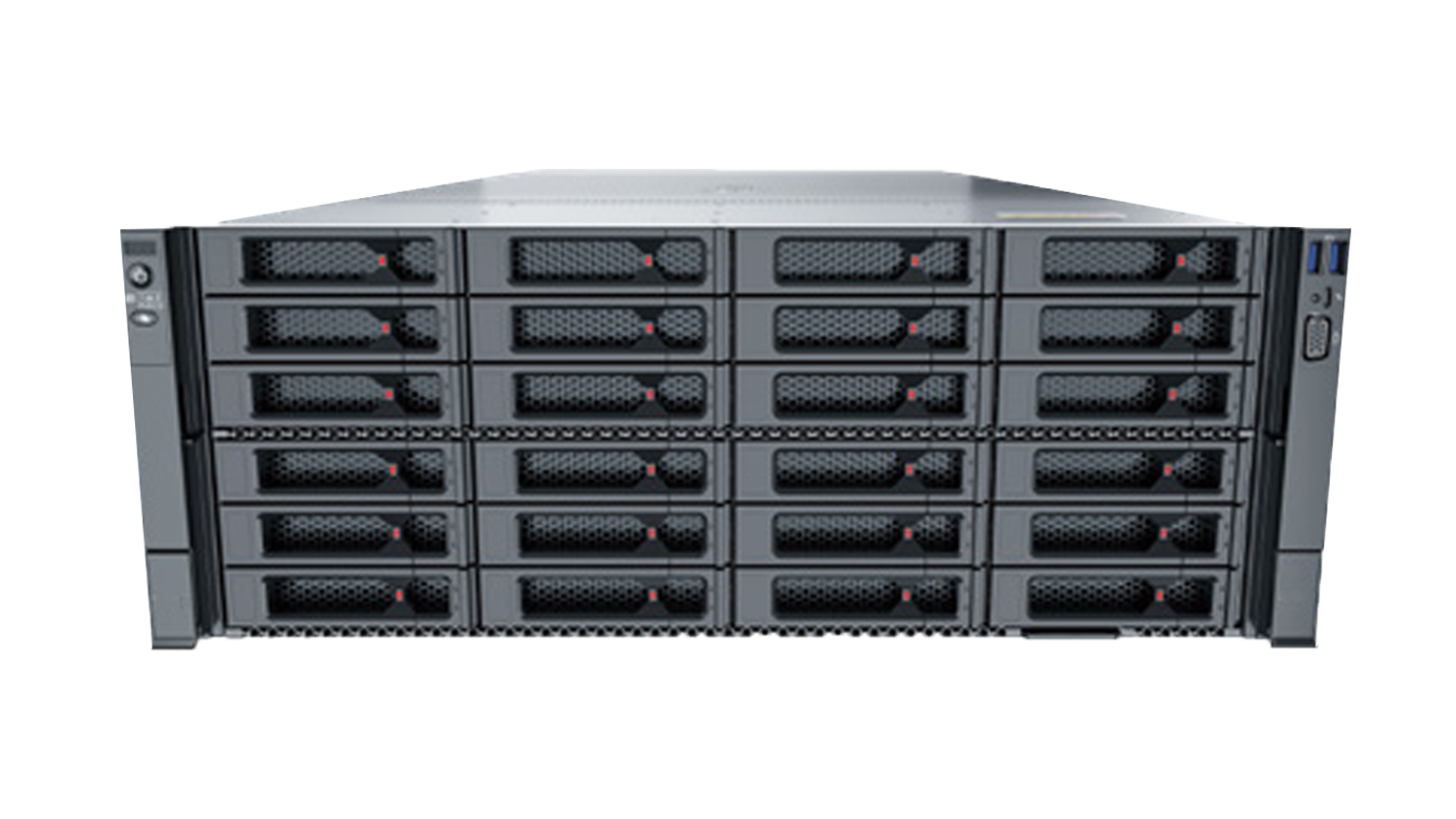

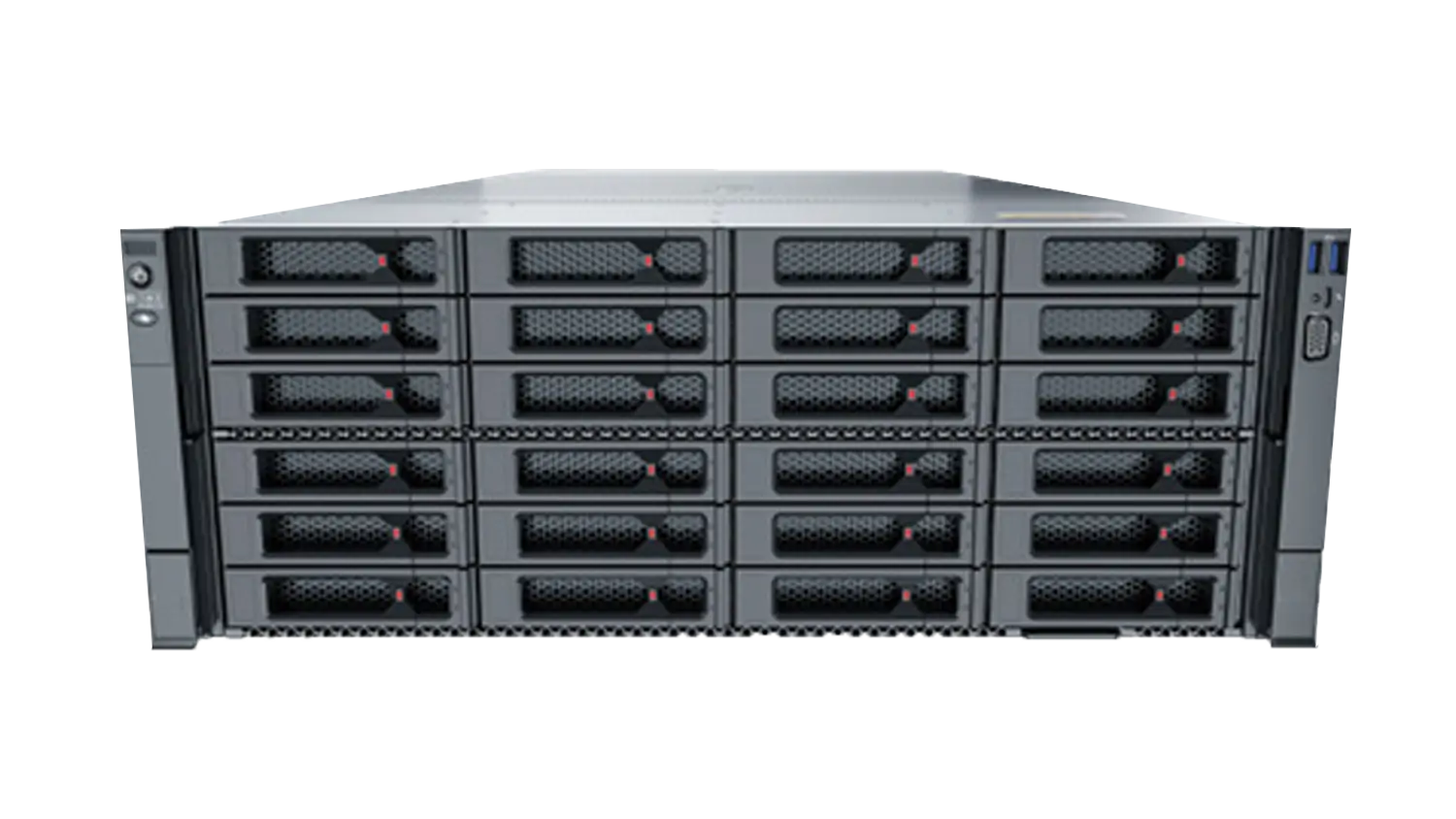

4U GPU server

Processor

Two fourth generation Intel ® xeon ® Scalable processor (Sapphire Rapids), supporting a maximum power of 350W per processor

Chipset

Emmitsburg PCH

Memory

32 flexible memory slots available, supporting 4800MT/s, with a maximum capacity of 128GB per slot

Local Storage

Supports multiple different hard drive configurations, and the hard drive supports hot swapping:

-Up to24 3.5-inch SAS/SATA hard drives can beconfigured

-Up to12 NVMe SSD drives+8SATA/SAS hard drives can beconfigured,supporting Flash storage: dual M.2 SSDs

RAID Support

Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions

GPU Acceleration Card

Supports 10 dual width GPU acceleration cards

Network

Multiple network expansion capabilities, supporting 3 OCP 3.0 network cards

PCle Extension

Up to 14 PCIe 5.0 standard slots, including 10 GPU card specific slots

Fan

6/8 hot swappable counter rotating fans, supporting N+1 redundancy

Power Supply

Four hot swappable power modules can be configured, supporting N+N/N+M redundancy, and supporting two types of power supplies: platinum/titanium. The optional specifications are as follows:

-1500W 380V High Voltage DC Power Supply (Input: 260V DC~400V DC)

-1200W -48V~-60V DC power supply (input: -38.4V DC~-72V DC)

-2000W AC Platinum/Titanium Power Supply

1800W (Input: 200V AC~220V AC or 192V DC~200V DC)

2000W (Input: 220V AC~240V AC or 200V DC~288V DC)

2150W (Input: 230V AC~240V AC or 230V DC~288V DC, only supported by titanium metal)

-3000W AC Titanium Power Supply

2500W (Input: 200V AC~220V AC or 192V DC~200V DC)

2900W (Input: 220V AC~230V AC or 200V DC~230V DC)

3000W (Input: 230V AC~240V AC or 230V DC~288V DC)

Administration

IBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features:

-IBMC supports standard interfaces such asRedfish, SNMP, IPMI2.0,etc;  Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity

-Optional FusionDirector management software, providing advanced management features such as five intelligences, toachieve intelligent, automated, visualized, and refined management throughout theentire lifecycle

Operating System

Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Ubuntu, etc

Security Features

Support security features such as power on password, administrator password, TPM 2.0, security panel, secure boot, lid opening detection, etc

Working Temperature

5ºC-40ºC (41ºF-104ºF), compliant with ASHRAE Class A1/A2/A3*

Product Certification

CCC, CQC, VCCI, CE, etc

Apt-get Install

Support L-shaped slide, extendable slide, and rail support

Dimensions (height x width x depth)

175mm×447mm×898mm
