DBS5900-G Base Station

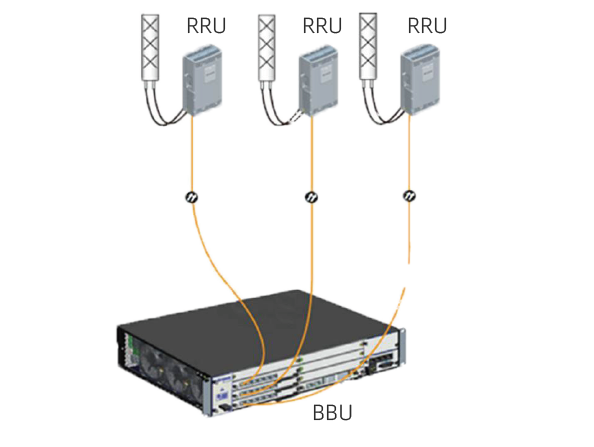

DBS5900-G is a new generation of 5G-oriented distributed base station solution, the DBS5900-G series base station includes BBU5900-G and 5000 series RF modules. Compared with the previous generation BBU3910-G, the BBU5900-G has four times the backplane switching capability, supports Massive MIMO with large bandwidth in 5G networks, and supports more powerful baseband boards to meet the long-term evolution requirements of sites. 5000 Series RF: High integration, low power consumption, fast installation.
The BBU5900-G is a baseband control unit whose main functions include:
Centrally manage the entire base station system, including operations and maintenance, signaling processing, and system clock.
Provides a physical interface to the transmission network to complete information exchange.
Provides a maintenance channel that connects to the OMC.
It completes the baseband processing of upstream and downstream data, and provides the CPRI interface for communication with the RF module.
Provide communication interface with environmental monitoring equipment, receive and forward signals from environmental monitoring equipment.

Technical Specification

Board user specifications

BoardName

RRC Connections (NR)

RRC connections (NR/LTE dual-mode)

UMPTg3 Main control board

14400

NR: 7200

LTE: 14400

UBBPg3b Baseband board

NR FDD:3600(Single cell 600)

NR TDD:3600(Single cell 1200)

NR: 1800

LTE5/10/15/20M:3600

BBU enclosure specifications

SpecificationDescription	SpecificationParameter
Power supply type	-48V DC
Dimensions (H x W x D mm)	86 x 442 x 310
Weight (kg)	18 (full)
Operating temperature	Long-term: -20℃ ~ +55℃
Atmospheric pressure	70kPa～106kPa

Full range of Enterprise wireless models

Base Station	Model Number	5 Series BBU-G
	BBU5900-G	Functional Module, BBU5900-G, Indoor type, Distributed Base Station Baseband Unit (-48V)
	BBU5900A-G	Function Module, BBU5900A-G, Outdoor type, Distributed Base Station Baseband Unit (-48V)
	Model Number	5 Series RRU-G
	RRU5301-G	RRU5301 - G, WD5MLRUMG70, WUYI, TX2620-2690 MHZ/RX2500-2570 MHZ, - 48 VDC, 9.8 G, 4 t4r, 4 * 40 w
	RRU5901-G	RRU5901 - G, WD5MQRUDG10, TIANSHAN, TX2110-2170 MHZ/RX1920-1980 MHZ, - 48 VDC, 9.8 G, 4 t4r, 4 * 40 w
	RRU5905W-G	Function module -RRU5905w-G-WD5MERULG32-WUYI(TX1805-1880MHz/RX1710-1785MHz,-48VDC,9.8G,2T2R,2*80W)
	RRU5909-G	RRU5909 - G, WD5MJRULC8Z, WUYI, TX925-960 MHZ/RX880-915 MHZ, - 48 VDC, 9.8 G, 2 t2r, 2 * 60 w
	RRU5904-G	RRU5904 - G, WD5MWRUMH10, WUYI, TX2110-2170 MHZ/RX1920-1980 MHZ, - 48 VDC, 9.8 G, 4 t4r, 4 * 60 w
	RRU5501-G	Function modules - RRU551-G-WD5mzaaphaad-Wuyi (TX1805-1880MHz/RX1710-1785MHz, TX2110-2170MHz/RX1920-1980MHz,-48VDC,9.8G,4T4R2,460W)
	RRU5502-G	RRU5502 - G, WD5MZAAPIAAD, WUYI, TX1805-1880 MHZ/RX1710-1785 MHZ, TX2110-2170 MHZ/RX1920-1980 MHZ, - 48 VDC, 9.8 G, 4 t4r * 2, 4 * 80 w
	RRU5904W-G	RRU5904w - G, WD5MERUMH30B, WUYI, TX1805-1880 MHZ/RX1710-1785 MHZ, - 48 VDC, 9.8 G, 4 t4r, 4 * 60 w
	RRU5905-G	RRU5905 - G, WD5MJRULG8Z, WUYI, TX925-960 MHZ/RX880-915 MHZ, - 48 VDC, 9.8 G, 2 t2r, 2 * 80 w
	RRU5818-G	RRU5818-G 2.3G,WD5MRRUSL80B,Multi-mode Multi-carriers Remote Radio Unit(TX:2300-2400MHz/RX:2300-2400MHz,-48VDC,25G,8T8R,With Installation Kit)
	RRU5509t-G	Function module -RRU5509t-G-WD5MYAAJICI-WUYI(TX758-788MHz/RX703-733MHz, TX791-821MHz/RX832-862MHz, TX925-960 MHZ/RX880-915 MHZ, t4r - 48 VDC, 9.8 G, 2 * 3, 2 * 140 w)
	RRU5919-G	RRU5919 - G, WD5MQRUSCK0C TX791-821 MHZ/RX832-862 MHZ, - 48 VDC, 9.8 G, 2 t2r, 2 * 60 w

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
