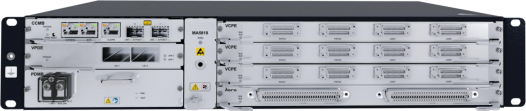

Board

Slot Requirement

Control board

0

VDSL2 service board

1-4

Voice service board

Combo board

Power board

5

Centralized vectoring processing board

6

Item

Description

Dimensions (H×W×D)

88.1mm x 442.0mm x 245.0mm (excluding mounting ears) 88.1mm x 482.6mm x 245.0mm (including mounting ears)

Weight

≤3.4kg (empty chassis)
≤13.6kg (chassis in full configuration)

Ambient temperature

-40°C to +65°C
NOTE
The device can start up at a lowest temperature of -25°C and run at a lowest temperature of -40°C.

Ambient humidity

5%RH to 95%RH

Atmospheric pressure

70 kPa to 106 kPa

Altitude

< 4000 m
NOTE
The air density varies with the altitude, which affects the heat dissipation of the device. Therefore, the ambient temperature of the device varies with the
altitude.

Working voltage range

- 38.4V DC to -72 V DC or 90 V to 264 V AC

Maximum input current

16 A (DC)/8 A (AC)

UNI

SuperVector/Vectoring/VDSL2/POTS

NNI

XG-PON/GPON/10GE/GE
