Item

MA5800-X17-G

MA5800-X15-G

MA5800-X7-G

MA5800-X2-G

Supported cabinet

N63E-22, N66E-18

N66E-22

N63E-22, N66E-22

N63E-22

Board configuration

Control board slots: 9, 10
Service board or
upstream interface
board slots: 1-8, 11- 19
Universal interface board slot: 0
Power board slots: 20, 21

Control board slots: 8, 9
Service board or
upstream interface
board slots: 1-7, 10- 17
Universal interface board slot: 0
Power board slots: 18,19

Control board slots: 8,9 Service board orupstream
interfaceboard
slots: 1-7Universal
interfaceboard slot: 0Power
board slots: 10, 11

Control board slots: 3,4
Service board or
upstream interface
board slots: 1-2
Does not support the universal interface
board.
Power board slot: 0

Dimensions (W x D x H) (mm)

Excluding mounting
ears: 493 x 287 x 486
Including mounting
ears: 535 x 287 x 486

Excluding mountingears
: 442 x 287 x 486Including
mountingears: 482.6 x 287 x 486

Excluding mounting ears: 442 x 268.7 x 263.9Including
IEC mounting ears: 482.6 x 268.7 x263.9Including

ETSImounting
ears: 535 x 268.7 x263.9

Excluding mounting ears: 442 x 268.7 x 88.1Including
IECmounting
ears: 482.6 x 268.7 x 88.1Including
ETSImounting
ears: 535 x 268.7 x 88.1

Maximum weight
(including mounting brackets)

45 kg

35 kg

26 kg

9.4kg

Maximum input current

60 A

60 A

40 A

DC power supply: 20 A
AC power supply: 8 A

Power supply mode

DC power support (dual backup)

DC power support (dual backup)
AC power supply + battery for backup

Working voltage range

-38.4V DC to - 72V DC

DC power supply: -38.4V to -72 VAC
power supply: 100-240 V

Rated voltage

-48 V/-60 V

DC power supply: -48 V/-60 V
AC power supply: 110 V/220 V

Ambient
temperature

-40°C to +65°CThe
MA5800-G can start up at a lowest temperature of -25°C.NOTEThe
+65°C temperature refers to the highest
temperature measured at the air intake vent of a service subrack.

Ambient humidity

5%-95% RH

Atmospheric pressure

70-106kPa

Altitude

< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of theMA5800-G varies with the altitude.

Payload switching capacity of the
control board (load sharing mode)

MPLA: 3.6 Tbit/s
MPLB: 7.0 Tbit/s
MPLG: 7.3 Tbit/s

MPSA/MPSG: 248 Gbit/s
MPSD: 560 Gbit/s

Maximum payload
bandwidth per
service slot (load sharing mode)

MPLA: 100 Gbit/s
MPLB/MPLG: 200 Gbit/s

MPSA/MPSG: 40 Gbit/s
MPSD: 100 Gbit/s

Maximum number of concurrent 4K video  users

17000

7000

2000

Maximum number of MAC addresses

262143

Maximum number of IPv4 routing tables

65536

Maximum number of IPv6 routing tables

16384

Maximum number of ARP tables

131072

32768

Upstream ports
(dual control boards
for upstream  transmission)

MPLA/MPLB: 8 x 10GE/GE
MPLG: 2 x 100GE + 4 x 10GE/GE

MPSA/MPSG: 4 x   10GE/GE + 4 x GE
MPSD-G: 8×10GE/GE

GPON ports

272

240

112

32

XG-PON ports

272

240

112

32

XGS-PON ports

272

240

112

32

XG-PON & GPON

272

240

112

32

Combo ports

XGS-PON & GPON

272

240

112

32

Combo ports

Symmetric 50G-    PON & XGS-PON

16

16

16

N/A

Combo ports

GE ports

816

720

336

96

10GE/2.5GE ports

408

360

168

16

Enterprise Optical Network

Optical Access

Model number

OLT

MA5800-X2-G

Dimensions (W x D x H) :
442mmx268.7mmx88.1mm
Service slots:
Maximum number of two access ports:
32 XG-PON/XGS-PON/GPON
96 GE/FE 48 10GE

MA5800-X7-G

Dimensions (W x D x H) :
442mmx268.7mmx263.9mm
Service slots: Maximum number of seven
access ports:
112 XG-PON/XGS-PON/GPON
336 GE/FE 168 10GE

MA5800-X15-G

Dimensions (W x D x H) : 442mmx287mmx486mm
Service slots: 15
Maximum number of access ports:
240 XG-PON/XGS-PON/GPO

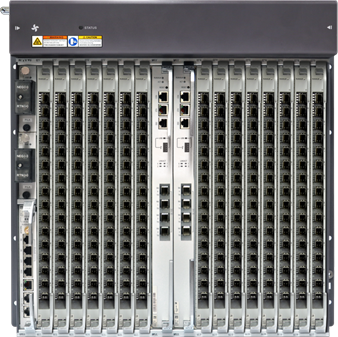

MA5800-X17-G

Dimensions (W x D x H) : 493mmx287mmx486mm
Service slots: 17
Maximum access ports:
272 XG-PON/XGS-PON/GPON
816 GE/FE 408 10GE

MA5801-G

Dimensions (W x D x H) :
442mmx220mmx43.6mm
Maximum number of access ports:
16 GPON 4 GE/10GE

MODEL

MDU

MA5818-G

Each MA5818-G supports a maximum of 256 POTS ports, 64 to 256 voice ports
2 GPON or 2 XG-PON or 2 GE or 2 10GE ports

Model

ONU

W626E-10-G

Huawei OptiXstar W626E-G is the campus Gigabit Optical Access Wi-Fi 6 ONU, offering 1 POTS voice interface, 4 Gigabit Ethernet interfaces, 1 USB interface
and 2.4GHz and 5GHz Wi-Fi 6 technology.

W826P-G

OptiXstar W826P-G, multi-service access device,1*XGSPON uplink (SC/UPC),4*GE+1*POTS+2*22.4GWIFI+2*25G WIFI+1*USB2.0,12V DC /POF, common configuration in China

T823E-T-G

OptiXstar T823E-T-G multi-service access device,XGSPON BOB(SC/UPC)+ XGSPONSFP+,8GE(POE++)+2*RS485/RS232+1*DI+1*D0, supports 1588V2, DC, domestic common configuration

P815E-X-E-G

OptiXstarP815E-X-E-G multi-service access device,1*XGSPON(BOB)+1*XGSPON(SFP+,24GE(POE++),2*XGE(POE++),2*XGE(optical), dual power supply, domestic general configuration - excluding uplink XGSPON(SFP+) optical module

T823E-D-G

Access network -OptiXstarT823E-D-G multi-service access equipment,GPON SFP+,8GE(POE++)+2*RS485+2*RS232+2*DI+1*DO+1*USB2.0, DC, domestic general configuration -T823E-D

P813E-G

Network side interface:2*XGS-PON User side interface: 8*GE PoE+

Optical Transport

Model number

OSN 9800-G Series

OSN9800  M12-G

442mm (W) x 295mm (D) x 347.2mm (H)
Maximum number of slots for inserting SPUs: 13
Maximum single-channel rate: 800Gbit/s (OTUC8)
Line rate: 10Gbit/s, 100Gbit/s, 200Gbit/s, 300Gbit/s, 400Gbit/s, 600Gbit/s, 800Gbit/s

OSN9800  M24-G

442mm (W) x 295mm (D) x 747.2mm (H)
1:1 mode: 12 large slots or 24 small slots
1:3 Mode: 10 large slots or 20 small slots
Optical layer :1 to 20 dimensional ROADM
electrical layer: 1:1 Mode
4.8Tbit/s OSUflex/ODUk4.8Tbit
/s Packet
services 1.92Tbit/s VC-4160Gbit
/s VC-3/VC-121:3
mode 10Tbit
/s OSUflex/ODUk4Tbit
/s Packet service 1.6Tbit
/s VC-4160Gbit
/s VC-3/VC-12 Line rate
: 1.25Gbit/s, 2.5Gbit/s, 10Gbit/s, 25Gbit/s, 100Gbit/s, 200Gbit/s, 300Gbit/s, 400Gbit/s, 600Gbit/s, 800Gbit/s Maximum single-channel
rate: 800Gbit/s (OTUC8)

Model number

E6600-G series

E6616-G

Sub-rack size (without mounting ears) :
221.5(H) x 442(W) x 220(D)mm
Maximum number of slots for inserting the business board:
DC: 14 AC: 12
Line rate: 2.5 Gbit/s, 10 Gbit/s
, 25 Gbit/s, 100 Gbit/s, 200 Gbit/s
Power Supply: DC: -48V to -60V
AC: 100V to 240V

E6608-G

Sub-rack dimensions (excluding mounting ears) :
88.1(H) x 442(W) x 220(D)mm
Maximum number of slots for inserting SPUs:
DC: 6 AC: 4
Line rate: 2.5 Gbit/s, 10 Gbit/s
, 25 Gbit/s, 100 Gbit/s, 200 Gbit/s
Power Supply: DC: -48V to -60V
AC: 100V to 240V

E6608T-G

Subrack dimensions (excluding mounting ears) :
88.1(H) x 442(W) x 220(D)mm
Maximum number of slots for inserting SPus: DC:
7 AC: 5
Line rate: 2.5 Gbit/s, 10 Gbit/s
, 100 Gbit/s, 200 Gbit/s
Power Supply: DC: -48V to -60V
AC: 100V to 240V
