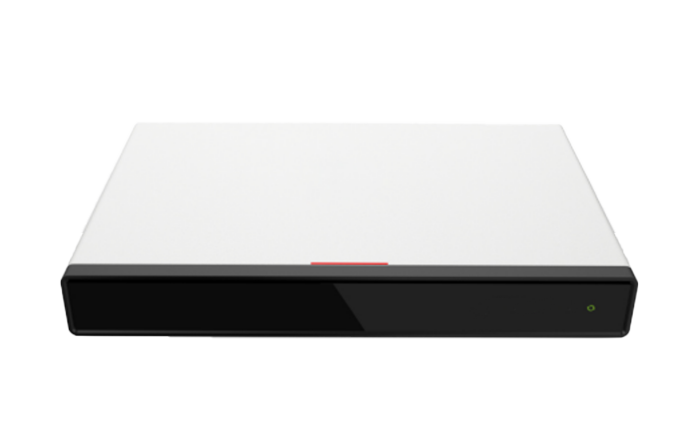

CloudLink BOX 310-G / CloudLink BOX 610-G
Integrated Ultra HD Video Conference Terminal
CloudLink BOX 310-G
CloudLink BOX 610-G
The CloudLink Box 310-G/610-G is a new generation of core technology, equipped with HarmonyOS, relying on high computing hardware platform architecture of ultra HD video conference terminal, with H.265 4K dual-stream audio and video media processing capabilities, to provide the best meeting experience. Rich audio and video interfaces can be adapted to various types of cameras and display devices to meet the integration requirements of various types of conference rooms.
Technical Specification

Complete System Components

Ultra HD codec,Ultra HD camera (optional), array microphone (optional), Touch touchscreen (standard on Touch), remote control (standard on remote), cable and power supply

Communication Protocol

Multimedia framework protocol

ITU-T H.323, IETF SIP

Video codec protocol

H.265 (including H.265 SVC), H.264 (including H.264 HP, H.264 BP, H.264 SVC), H.263, H.263+

Audio codec protocol

G.711A, G.711U, G.722, G.722.1C, G.719, G.729A, AAC-LD, OPUS

Auxiliary stream protocol

ITU-T H.239, IETF BFCP

Other communication protocols

H.225, H.235, H.241, H.245, H.350, H.460, RFC2833, LDAP

Network Transport Protocol

TCP/IP, RTP, RTCP, DHCP, DNS, SMTP, SNMP, SNTP, SSH, HTTP, HTTPS, TR-069

Video Features

Video resolution

4K30

Other image features

Support PIP (picture-in-picture), POP (Picture out Picture) and other display modes

VME Active Video Motion Enhancement

Video Intensifier

Image Intensifier (View Processing)

Audio features

Fast echo cancellation (AEC), Automatic noise suppression (ANS), Automatic gain Control (AGC), voice clarity (VoiceClear), voice enhancement (AudioEnhancer), support for lip synchronization

Security Stability

Network adaptability

IPv4 and IPv6, DiffServ,URI calls

Super Strong Error Correction (SEC), Packet Loss Retransmission (ARQ), Video Forward error correction (FEC), Intelligent Speed Regulation (IRC), Audio Backward Error Correction (PLC)

Network security

Signaling H.235/TLS encryption, media SRTP encryption

Meeting access password, meeting control password, administrator password

Support national secrets (SM2, SM3, SM4)

Dual stream encryption

Media streams of SIP/H323 calls support the encryption algorithm AES256

Firewall Traversal

H.460 Public-Private Network Traversal/Static NAT

Environmental Requirements

Temperature: 0℃  to 40℃ (working condition)

Relative Humidity: 10% to 95%RH (working condition)

Ambient noise: less than 46dBA SPL

-40℃  to 70℃ (non-working condition)

5% to 95% RH (non-working)

Properties

Model Number

Box 310

Box 610

Box 610-S

Locate

Business type

Professional

Secure

Application scenarios

Small and medium-sized meeting rooms

Medium and large conference rooms

Large and medium-sized meeting rooms

Moving image resolution

H.264

1080p 60fps, minimum bandwidth 1Mbps

1080p 30fps with a minimum bandwidth of 512Kbps

720p 60fps with a minimum bandwidth of 768Kbps

720p 30fps with a minimum bandwidth of 384Kbps

H.265

4K 30fps, minimum bandwidth 2Mbps

1080p 60fps with a minimum bandwidth of 768Kbps

1080p 30fps with a minimum bandwidth of 384Kbps

720p 60fps with a minimum bandwidth of 512Kbps

720p 30fps, minimum bandwidth 256Kbps

H.264

1080p 60fps with 1Mbps minimum bandwidth

1080p 30fps with a minimum bandwidth of 512Kbps 720p 60fps with a minimum bandwidth of 768Kbps

720p 30fps with a minimum bandwidth of 384Kbps

H.265

4K 30fps, minimum bandwidth 2Mbps

1080p 60fps, minimum bandwidth 768Kbps

1080p 30fps with a minimum bandwidth of 384Kbps

720p 60fps with a minimum bandwidth of 512Kbps

720p 30fps, minimum bandwidth 256Kbps

H.264

1080p 60fps with 1Mbps minimum bandwidth

1080p 30fps with a minimum bandwidth of 512Kbps

720p 60fps with a minimum bandwidth of 768Kbps

720p 30fps with a minimum bandwidth of 384Kbps

H.265

4K 30fps, minimum bandwidth 2Mbps

1080p 60fps,

Minimum bandwidth 768Kbps

1080p 30fps with a minimum bandwidth of 384Kbps

720p 60fps with a minimum bandwidth of 512Kbps

720p 30fps, minimum bandwidth 256Kbps

Dual flow capacity

1080P30 + 1080P30

1080P60 + 1080P60

4K30 + 4K30

1080P30 + 1080P30

1080P60 + 1080P60

4K30 + 4K30

1080P30 + 1080P30

1080P60 + 1080P60

4K30 + 4K30

Video input interface

1×HT-RX

2×HDMI

1×HT-RX

3×HDMI

1×HT-RX

3×HDMI

Video output port

2×HDMI

3×HDMI

3×HDMI

Audio input port

1×HD-AI (Level 2)

1×cannon head

2×HDMI (audio input)

2×RCA

1×HD-AI (Level 2)

1×cannon head

3×HDMI (audio input)

2×RCA

1×HD-AI (Level 2)

1×cannon head

3×HDMI (Audio input)

2×RCA

Audio output interface

4×RCA

1×HDMI (audio output)

4×RCA

1×HDMI (audio output)

4×RCA

1×HDMI (audio output)

Other ports

1×USB 2.0A port

1×USB 3.0A port

2×10/100/1000M LAN

1×PoE network port (Touch)

2×RJ45 serial port

1×WIFI (built-in)

1×USB 2.0A port

1×USB 3.0A port

2×10/100/1000M LAN

1×PoE network port (Touch)

2×RJ45 serial port

1×WIFI (built-in)

1×USB 2.0A port

1×USB 3.0A port

2×10/100/1000M LAN

1×PoE network port (Touch)

2×RJ45 serial port

Microphone cascade

2

2

2

Bandwidth

IP: 64kbps to 8Mbps

IP: 64kbps to 8Mbps

IP: 64kbps to 8Mbps

Size

Terminal size:

442mm×58mm×285mm

Package Size:

580mm×205mm×380mm

Net weight: 4.2kg

Gross weight: 8.1kg

Terminal size:

442mm×58mm×285mm

Package Size:

580mm×205mm×380mm

Net weight: 4.2kg

Gross weight: 8.1kg

Terminal size:

442mm×58mm×285mm

Package Size:

580mm×205mm×380mm

Net weight: 4.2kg

Gross weight: 8.1kg

Electrical characteristics

Operating Voltage: 100V to 240VAC

Working frequency: 50Hz to 60Hz

Maximum Power Consumption: 100W

Built-in AC/DC power modul

Working voltage: 100V to 240VAC

Operating frequency: 50Hz to 60Hz

Maximum Power Consumption: 100W

Built-in AC/DC power module

Working voltage: 100V to 240VAC

Working frequency: 50Hz to 60Hz

Maximum Power Consumption: 100W

Built-in AC/DC power module


* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
