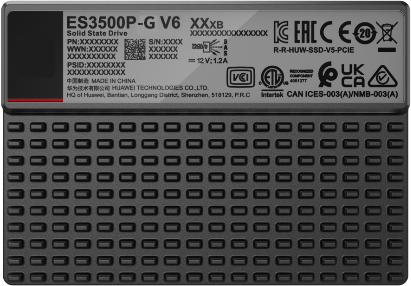

Enterprise-class high-performance NVMe SSD ES3000-G V6 series

High performance
· Super high IOPS/ bandwidth performance
· The sequential read bandwidth is up to 7400MB/s, and the random read bandwidth is up to 1.7 million IOPS
· 11μs Ultra-low write latency
High reliability
· Average trouble-free time is 2.5 million hours
· Self-developed FSP/LDPC algorithm, unrepairable error bit rate below 10-18
· Intelligent multi-stream technology effectively reduces write amplification and prolongs service life
High energy efficiency
· Random read performance of 97K IOPS per watt, 20% higher than mainstream disks in the industry
· 9 power intelligent dynamic adjustment, adapt to a variety of customer scenarios
Easy operation and maintenance
· Violent hot swap is supported
· Supports no-restart and internal online upgrade
· Complete log system, fast root cause location
· Firmware second-level activation, one-click repair

Technical Specification

Model number		ES3500-G V6	ES3600-G V6
Base specification	Capacity	1920/3840/7680GB	1600/3200/6400GB
	Form	U. 2,2.5 inches, 15mm thickness
	Port	PCIe 4.0 x4
	NAND Flash	3D TLC
Basic property	Sequential read	Up to 7400MB/s
	Sequential write	Up to 4800MB/s
	Random read	Up to 1700K IOPS（4KB）
	Random write	Up to 220K IOPS（4KB）	Up to 400K IOPS（4KB）
	Read delay	Up to 68 μs
	Write delay	Up to 11 μs
Life span	DWPD（5 years）	1	3
Power dissipation	Average power consumption	Idle 8.5W, Active 17.5~21W
Reliability	Power failure protection	support
	Particle failure protection	support
	Mean time to failure (MTBF)	2.5 million hours
	Annual failure rate (AFR)	≤0.35%
	Bit error rate (UBER)	10⁻¹⁸
Peculiarity	Peculiarity	Supports 512/4096 series sector sizes Support online diagnosis and online refurbishment The NVMe command is used for upgrade
	Advanced features	Intelligent multi-stream /SR-IOV/ Atomic write /TRIM, etc

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
