Basic physical parameters

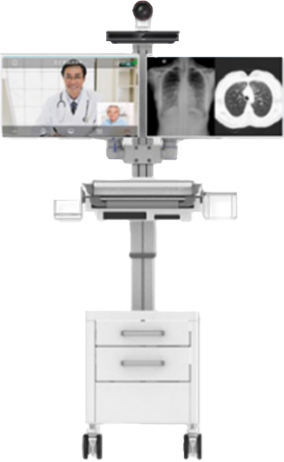

Car body

Maximum dimensions of the whole vehicle1100mm (W)*725mm (D)* 1825mm (H)

Work surface

Size608mm (W)*470mm (D), bearing 20kg; Electric lifting, lifting height 1580mm~1810mm

Box

Integrated sheet metal chassis550mm (W) x 450mm (D) x 440mm (H), one large and one small drawer each, with a locked rear door

Wheels for Medical purposes

4 high-strength anti-winding silent universal medical wheels thatsupport wheel locking

External pendants

1 medical hand holder, 1 medical hanging blue (stainless steel)

Control panel

One-button switch, with control panel (up/down) to support power and battery indicator

Package size

Body: 820mm (W) *655mm (D) *1680mm (H);
Monitor: 598mm (W) *105mm (D) *400mm (H)

Input port

Support 1* (S-video/ CVBS) input, support external 1* DVI/ VGA signal input;
Support HDMI from the main device line input;
1 *Audio-in 3.5mm 1 *RJ45

Output port

1 * Audio-out 3.5mm

Aesthetics

All cables are hidden, the whole vehicle is beautiful, waterproof penetration

Working host

CPU

I7 quad core

Memory

8GB DDR4

Hard disk

256GB SSD

Output port

1* HDMI 1* headphones

Input jack

1* 100/1000M network port 1*MIC 2 *USB port

Operating system

Windows10 support (customer-owned installation)

Display

Dimensions

23.8"* 2

Type

Led-backlit color LCD display

Color

white

Display parameters

Resolution: 1920* 1080
Contrast: 1000:1 (Typ.) Brightness not less than 250cd/m2

Speaker power

Built-in 2 x 5W speaker

Hd codec (with Bar 300-G)

Active double stream

1080P30 + 1080P30

Data Conference: 1080P30 + 1080P30

Full HD main lens

5X/12X optical zoom, F1.8 aperture, 2.13 megapixels, 1/2.8 "CMOS

Maximum horizontal viewing Angle 83°/72°, maximum vertical viewing Angle 51.6°/44.5°Pan/Pitch Angle: +/-100°(pan), +/ -30°(pitch)

Translation/pitch speed: 5°/s ~ 60°/s (translation), 3°/s ~ 200°/s (pitching)

Wisdom Eye

F2.8 aperture, 2 megapixels, 1/2.9 inch CMOS Angle of view 81°horizontal, 47°vertical

Audio input interface

Built-in array microphone 1*3.5mm 1*HD-AI 1*HDMI (audio)

Audio output port

1*3.5mm 2*HDMI (audio) 1*USB 3.0 Type-A

Video input port

1 * Built-in camera (1 channel 5X/12X Smart Best View) 1 *HDMI

Video output port

2 *HDMI 1 *USB 3.0 Type-A

Other ports

1 * RJ45 (10/100/1000M LAN) 1 * RJ45 (for Touch) 1 * Wi-Fi (built-in)

Functional Features

WEB will control, Touch will control

WEB Image Monitoring

Hd picture snapshot 16:9 and 4:3 display mode adaptation and conversion

Picture in picture: 1/16 picture size, position optional

LDAP/ Network address book

Open API interface, support for third-party integration

USB zero configuration, plug and play

Wireless data sharing

IdeaShare

Calling call set

Auto-Framing

Smart voice assistant

2.4G/5G dual-band Wi-Fi, support relay mode, support AP, STA open at the same time

Bandwidth

64kbps to 8Mbps

5G/4G specifications

Communication standards

3GPP Release 15

Networking mode

NSA/SA

Antenna type

External 5GG antenna with 4 antennas

Network band

Support 5G/4G card, 5G full Netcom (n41/n78/n79), 4G full Netcom (B1B3B5B8B34B38B39B40B41)

Power cell

Input voltage

100V AC to 240V AC 50Hz to 60Hz

Output voltage and power

DC5V/12V/19V Max output power 240w

Power Supply type

Lithium-ion battery

Charge and discharge time

Charging time 5~6h, continuous full load working time≥4 hours (not counting battery loss)
battery effective charge and discharge times≥2000 cycles

Power plug

Pin word port input

Environment

Temperature

Operating temperature: 0℃~40℃Storage temperature: -20℃~50℃

Humidity

Working humidity: 10% ~ 90%, no condensation; Storage humidity: 10% ~ 90%, no condensation
